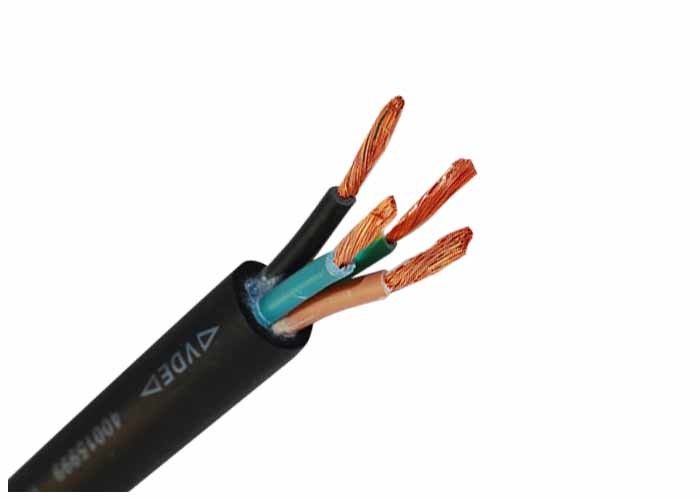

Rubber Sheathed Cable for communication , YQ / YQW / YZ / YZW / YC / YCW Cable

Rubber Sheathed Cable for communication , YQ / YQW / YZ / YZW / YC / YCW Cable

Product name: Rubber Sheath Cable,YQ/YQW/YZ/YZW/YC/YCW Cable flexible rubber cable ,high quality

Constructions

Conductor: plain annealed copper

Insulation:rubber

Outer sheath:rubber

Note: Insulation color as per standards or at request

Applications

The product is suitable for use in connection lines or fixed installation of power tools, a variety of portable electrical equipment, welding and welding clamp with rated power frequency voltage up to and including 450/750V.

Standards

International: IEC245-1980

Chinese: GB5013.1.2.3-85

Other standards such as BS,DIN and ICEA upon request

Technical data

The allowed operating temperature of the core is 65°C when U0/U is 0.66/1.14kV and below, 85°C when U0/U is 3.6/6kV
Min. bending radius is six times the size of cable diameter
The yellow sheath cable should not be exposed in the sun for long time

Coal Mining Machine Cable:The cables are suitable for coal mining machine and similar equipment as power connecting cable.

Certificates

CE, RoHS, CCC, KEMA and more others at request
