| 원래 장소 | 중국 |
| 브랜드 이름 | QINGDAO YICABLE CABLE |
| 인증 | KEMA/CE/TUV/ISO/RoSH |
1. Flexible coal mine fire-resistance cables
2. IEC, ASTM, DIN, BS standard
3. OEM is acceptable

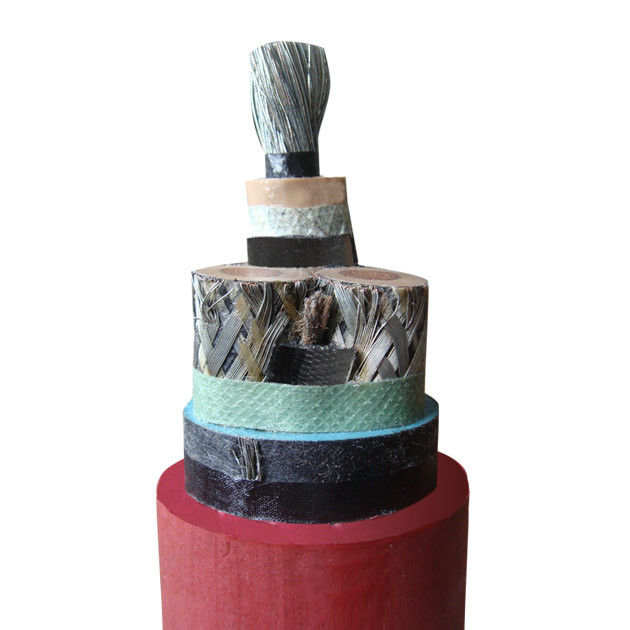

This product is the rubber sheath flexible series used in coal-mining. It is fit for power connected lines for the coal mine machine and the similar to power supply of rated voltage 3.6/6kV and below
Feature:
1) The allowed operating temperature of the core is 65°C when U0/U is
0.66/1.14kV and below, 85°C when U0/U is 3.6/6kV
2) Min. bending radius is six times the size of cable diameter
3) The yellow sheath cable should not be exposed in the sun for long time
Coal Mining Machine Cable:The cables are suitable for coal mining machine and similar equipment as power connecting cable.
| Type | Name | Power cores No. |
Cross section of power cores (mm2) |
Rated voltage |
Rated temp. |
Min. bending radius | Executive standard | Application |
| MC-0.38/0.66 | Rubber sheathed flexible cable for coal mining machine | 3 | 16~50 | 0.38/0.66 | 60ºC |
6 times of cable diameter 6 times of cable diameter |
MT-818.2-1999&IEC
|
The cables are suitable for coal mining machine and similar equipment as power connecting wire, rated voltage 1.9/3.3 and below. |
| MCP-0.66/1.14 | Shield rubber sheathed flexible cable for coal mining machine | 3 | 35/50~95 | 0.66/1.14 | 60ºC | |||
| MCP-1.9/3.3 | Shield rubber sheathed flexible cable for coal mining machine | 3 | 35~95 | 1.9/3.3 | 90ºC | |||
| MCPT-1.9/3.3 | Metal shield rubber sheathed flexible cable for coal mining machine. | 3 | 35~95 | 1.9/3.3 | 90ºC | The cables are suitable for coal mining machine and similar equipment as power connecting wire, rated voltage 1.9/3.3KV and below | ||
| MCPTJ-1.9/3.3 | Metal shield surveillance-type rubber sheathed flexible cable for coal mining machine. | 3 | 35~95 | 1.9/3.3 | 90ºC | |||
| MY-0.38/0.66 | Rubber sheathed movable flexible cable for coal mine | 3+1 | 4~70 | 0.38/0.66 | 65ºC | The cables are suitable for all kinds of movable equipment in coal mining as power connecting wire rated voltages 0.66/1.14KV and below | ||
| MYP-0.66/1.14 | Rubber sheathed screened movable flexible cable for coal | 3+1 | 10~95 | 0.66/1.14 | 65ºC | |||
| MYPTJ-3.6/6 | Flexible rubber-sheathed cables with metallic screens and monitoring core for coal mine | 3 | 16/3~25/3 | 3.6/6 | 90ºC | The cables are suitable for power connecting wiring of movable transformers and similar equipments in mine, rated voltage 3.6/6KV | ||
| MZ-0.3/0.5 |
Rubber sheathed cable for electric drill |
3+1 | 2.5~4 | 0.3/0.5 | 65ºC | The cables are suitable for electric drill in coal mine as power connecting wiring, rated voltage is 0.3/0.5KV. | ||
| MZ-0.3/0.5 |
Rubber sheathed cable screened for electric drill |
3+1 | 2.5~4 | 0.3/0.5 | 65ºC | |||
| MYQ-0.3/0.5 | Rubber sheathed light-duty movable flexible cable for coal mine | 2~4 | 1.0~2.5 | 0.3/0.5 | 65ºC | The cables are suitable for light in laneway, interlock of transportation machine and equipments of control and signal with rated voltage 0.3/0.5KV. | ||
| MYQ-0.3/0.5 | Rubber sheathed light-duty movable flexible cable for coal mine | 7&12 | 1.0~2.5 | 0.3/0.5 | 65ºC | |||
| MVV-0.6/1 | Copper core PVC insulation and sheath flame retardant power cable for coal mine | 3 | 1.5~300 | 0.6/1 | 70ºC |
16 times of cable diameter r |
The cables are used as power transmission line with rated voltage 0.6/1KV. They are suited to fixed laid in coal mine | |
| MVV22-0.6/1 | Copper core PVC insulation and sheath double-deck tape armored flame retardant power cable for coal mine |
3 3+1 4 |
2.5~300 4~185 4~300 |
0.6/1 | 70ºC | |||
| MVV32-0.6/1 | Copper core PVC insulation and sheath steel wire armored flame retardant power cable for coal mine | 3 | 4~300 | 0.6/1 | 70ºC | |||
| MYJV-0.6/1 | Copper core XLPE insulation and PVC sheath flame retardant power cable for coal mine | 3 | 1.5~300 | 0.6/1 | 90ºC | |||
| MYJV22-0.6/1 | Copper core XLPE insulation and PVC sheath double-deck flame retardant power cable for coal mine |
3 3+1 |
4~300 | 0.6/1 | 90ºC | |||
| MYJV32-0.6/1 | Copper core XLPE insulation and PVC sheath steel wire armored flame retardant power cable for coal mine | 3 | 4~300 | 0.6/1 | 90ºC |
