Distribution Lines Armoured Electrical Cable , Aluminium Armored Cable

Distribution Lines Armoured Electrical Cable , Aluminium Armored Cable

모크: 500m
가격: negotiable
표준 포장: 철 나무로 되는 드럼 패킹 (보호에)
배달 기간: 10 -15 작업 일은 후에 당신의 지불금을 받았습니다
지불 방법: 티 / T 또는 액정
공급 능력: 달 당 100KM
자세한 정보
원래 장소
중국
브랜드 이름
QINGDAO YICABLE CABLE
인증
CE, RoHS, CCC, KEMA
제품 이름:
기갑 /Armored 고압선
지휘자의 명목상 지역:
1000 mm2에 1.5mm2
전압을 시험하십시오:
12.5 kV/5min.
표준:
IEC 60502-2 IEC 60228
응용 프로그램:
갱구에서 놓는 전원 분배 선은, 지하에 급수합니다
정격된 전압:
3.6/6KV,
강조하다:

armored electrical wire

,

armoured power cable

제품 설명

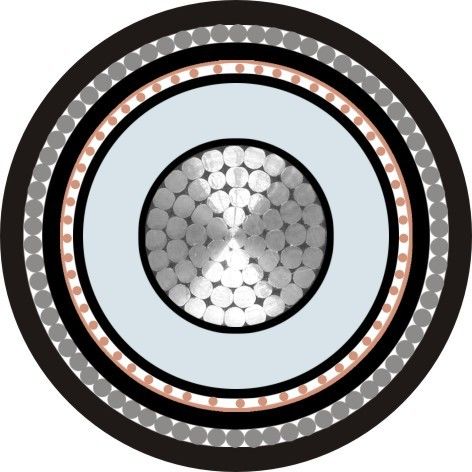

Distribution Lines Armoured Electrical Cable , Aluminium Armored Cable





Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Inner covering : PVC
Armoring : Aluminum wire
Sheath : PVC type ST2 to IEC 60502, black





CODE Designation:



YJ: XLPE insulation

V: PVC sheath

72: Aluminum wire armoring





Applications:



Suitable for use in power distribution lines with rated voltage 3.6/6KV. For laying in shaft, water underground and large difference of level, able to bear external mechanical pressure and moderate pulling force.





Standards:



International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request





Technical data:





Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 15 x cable O.D





Certificates:



CE, RoHS, CCC, KEMA and more others at request





Brief technical Specification:



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Inner Sheath Thickness Dia. Of Armor Wire Sheath Thickness Approx. O.D. Approx. Weight
mm2 pc/mm mm mm mm mm (mm) kg/km
1 × 25 7/2.14 2.5 1.2 1.6 1.8 24.0 1396
1 × 35 7/2.52 2.5 1.2 1.6 1.8 25.0 1550
1 × 50 10/2.52 2.5 1.2 1.6 1.8 26.0 1754
1 × 70 14/2.52 2.5 1.2 1.6 1.9 28.0 2054
1 × 95 19/2.52 2.5 1.2 1.6 1.9 29.0 2367
1 × 120 24/2.52 2.5 1.2 1.6 2.0 31.0 2701
1 × 150 30/2.52 2.5 1.2 2.0 2.0 33.0 3301
1 × 185 37/2.52 2.5 1.2 2.0 2.1 35.0 3756
1 × 240 48/2.52 2.6 1.2 2.0 2.2 38.0 4458
1 × 300 61/2.52 2.8 1.2 2.0 2.3 40.0 5223
1 × 400 61/2.97 3.0 1.3 2.5 2.4 45.0 6804
1 × 500 61/3.23 3.2 1.3 2.5 2.5 50.0 8094
