| 모크: | 600 미터 |
| 가격: | US$0.51~122 per Meter |
| 표준 포장: | 나무로 되는 드럼 |
| 배달 기간: | 7 ~ 10 일 |
| 지불 방법: | 티 / T는, 패 / C 조 |
| 공급 능력: | 달 당 10,000 KM |

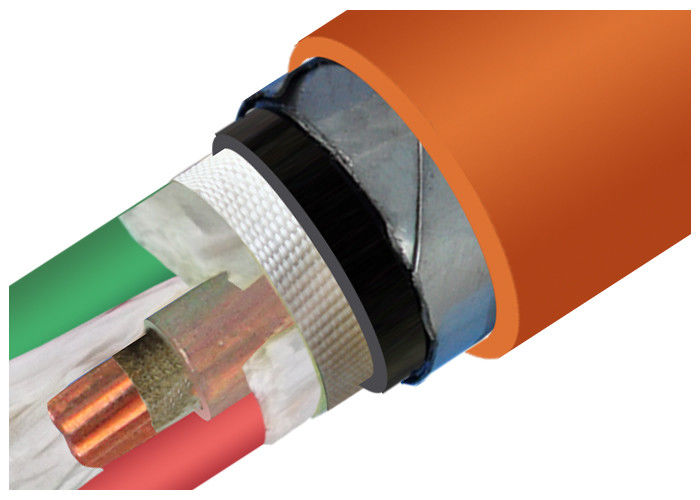

Construction:
Stranded (RM) bare copper as per IEC60228
Mica Tape for Fire-Proof
XLPE (cross-linked polyethylene) Insulation
Fillers strip, Yarn, or Paper
Non woven Wrapping tape or Flame Retardant
Extruded PVC Inner Covering
Galvanized Steel Tape Armoured
Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH
Application:
Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.
Technical data:
Test voltage 0.6/1 kV [kV] 3.5 / 5 min.
Temperature range in motion -5°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard EN 60332-1-2
Standards:
IEC 60502, 60332, 60331
DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)
Model Explanation:
| Model | Nominal Cross Section (mm2) | ||||
| Single Core |
Two Core |
Three Core |
Four Core |
Five Core |
|
| NH-VV NH-YJV | 1.5-800 | 1.5-800 | 1.5-800 | 1.5-800 | 1.5-800 |
| NH-VV22 NH-YJV22 | 6-400 | 4-300 | 4-300 | 4-300 | 4-300 |
| NH-VV32 NH-YJV32 | 10-800 | 4-300 | 4-300 | 4-300 | 4-300 |
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.
