| 모크: | 1000 미터 |
| 가격: | US$0.29 -119/Meter |
| 표준 포장: | 나무로 되는 드럼 |
| 배달 기간: | 7 일 |
| 지불 방법: | 티 / T는, 패 / C 조 |
| 공급 능력: | 달 당 20,000 킬로미터 |
1.U0/U: 0.6/1kV
2.Standard: IEC60502, BS7870, GB/T12706
3.Max. working temperature: 90 °C , can be 110 °C as requirement
4.Conductor: Class 1/2 annealed bare copper solid or strands
5.Insulation: XLPE
6.Armored: STA
7.Sheath: PVC
8. Cross section area: 1.5~630mm2
9. Cores: 1~5 cores,3C+1E,4C+1E,3C+2E
10. Packing:Wooden drum or as requirement
11.Certification : ISO9001/ISO14001/OHSAS18001/CCC/CE/CB
12.Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable
Applications

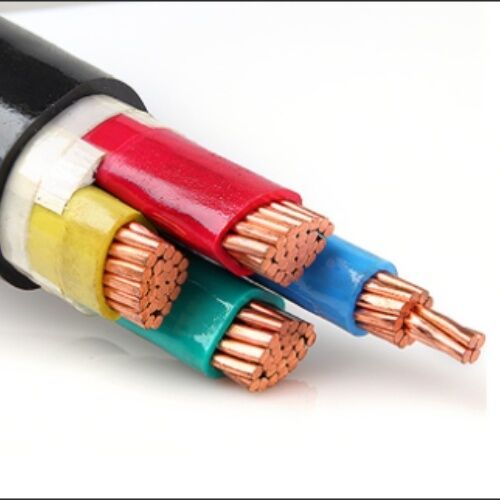

STA Armored Electric Cable YJV22 4+1 Core Cable applies to electrical power transmission and distribution lines with AC rated voltage Uo/ U up to and including 0.6/1kV.
For outdoor and indoor installation in damp and wet locations,laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying,as well as in locations susceptible to sliding.
YJ: XLPE insulation
V: PVC insulation
V: PVC sheath
22: Galvanized steel tape armoring
32: Galvanized steel wire armoring
Standards
International: IEC 60502, IEC 60228, IEC 60332
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
font-size:10.0000pt;mso-font-kerning:0.0000pt;" >PVC type ST2 to IEC 60502, black
Technical data
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 12 x cable O.D
Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Inner Covering Thickness | Steel Tape Thickness | Sheath Thickness | Approx. O.D. | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 3 × 4+ 1 × 2.5 | 1/2.25+1/1.38 | 0.7 | 1.0 | 2 × 0.2 | 1.5 | 16.0 | 443 | 4.61 | 3.5 | 34 | 45 |
| 3 × 6+ 1 × 4 | 1/2.76+1/2.25 | 0.7 | 1.0 | 2 × 0.2 | 1.5 | 17.0 | 531 | 3.08 | 3.5 | 43 | 57 |
| 3 × 10+ 1 × 6 | 7/1.38+1/2.8 | 0.7 | 1.0 | 2 × 0.2 | 2.0 | 20.0 | 741 | 1.83 | 3.5 | 60 | 77 |
| 3 × 16+ 1 × 10 | 7/1.78+7/1.38 | 0.7 | 1.0 | 2 × 0.2 | 2.0 | 23.0 | 1135 | 1.15 | 3.5 | 83 | 105 |
| 3 × 25+ 1 × 16 | 7/2.14+7/1.78 | 0.9 | 1.0 | 2 × 0.2 | 2.0 | 26.0 | 1556 | 0.727 | 3.5 | 105 | 125 |
| 3 × 35+ 1 × 16 | 7/2.52+7/1.78 | 0.9 | 1.0 | 2 × 0.2 | 2.0 | 28.0 | 1896 | 0.524 | 3.5 | 125 | 155 |
| 3 × 50+ 1 × 25 | 10/2.52+7/2.14 | 1.0 | 1.0 | 2 × 0.2 | 2.0 | 31.0 | 2518 | 0.387 | 3.5 | 160 | 185 |
| 3 × 70+ 1 × 35 | 14/2.52+7/2.52 | 1.1 | 1.2 | 2 × 0.2 | 2.5 | 36.0 | 3293 | 0.268 | 3.5 | 200 | 225 |
| 3 × 95+ 1 × 50 | 19/2.52+10/2.52 | 1.1 | 1.2 | 2 × 0.5 | 2.5 | 40.0 | 4349 | 0.193 | 3.5 | 245 | 270 |
| 3 × 120+ 1 × 70 | 24/2.52+14/2.52 | 1.2 | 1.2 | 2 × 0.5 | 2.5 | 44.0 | 5365 | 0.153 | 3.5 | 285 | 310 |
| 3 × 150+ 1 × 70 | 30/2.52+14/2.52 | 1.4 | 1.4 | 2 × 0.5 | 3.0 | 49.0 | 6468 | 0.124 | 3.5 | 325 | 345 |
| 3 × 185+ 1 × 95 | 37/2.52+19/2.52 | 1.6 | 1.4 | 2 × 0.5 | 3.0 | 52.0 | 7854 | 0.0991 | 3.5 | 375 | 390 |
| 3 × 240+ 1 × 120 | 48/2.52+24/2.52 | 1.7 | 1.6 | 2 × 0.5 | 3.5 | 68.0 | 9814 | 0.0754 | 3.5 | 440 | 450 |
| 3 × 300+ 1 × 150 | 61/2.52+30/2.52 | 1.8 | 1.7 | 2 × 0.5 | 3.5 | 71.0 | 12781 | 0.0601 | 3.5 | 505 | 515 |
| 3 × 400+ 1 × 240 | 61/2.97+48/2.52 | 2.0 | 1.7 | 2 × 0.5 | 3.5 | 76.0 | 16359 | 0.0470 | 3.5 | 570 | 575 |
All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.
The packing material is depended on the weight and size of cable.
The good information, manufacture information, and the client's information is firmly printed on each size of drum.
After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.
The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
Our Services
♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
|
|
