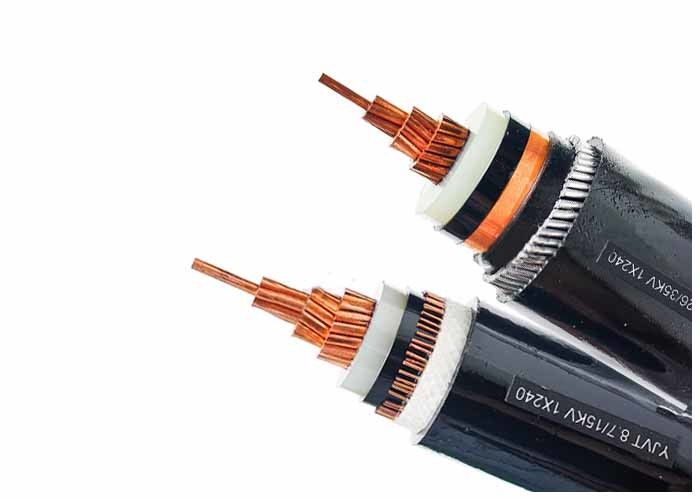

Cable Elect 300MM2 X 1 Core AWA PVC Armoured Electrical Cable 2 Years Warranty

Cable Elect 300MM2 X 1 Core AWA PVC Armoured Electrical Cable 2 Years Warranty

모크: 500m
가격: USD 2.66-8.89/M
표준 포장: 나무로 되는 드럼 또는 강철 나무로 되는 드럼
배달 기간: 주어진 예금 후에 7 일
지불 방법: L/C, T/T, 서부 동맹, MoneyGram, D/P, D/A
공급 능력: 8532KM/Day
자세한 정보
원래 장소
중국
브랜드 이름
QINGDAO YICABLE CABLE
인증
CE/KEMA/TUV/RoSH/ISO
지휘자 임시 직원:
90도
기갑 물자:
둥근 철강선.
견본:
유효한
전압을 시험하십시오:
35000V
단열재:
XLPE
보증:
이년
강조하다:

armored cable wiring

,

armoured power cable

제품 설명

Cable Elect 300MM2 X 1 Core AWA PVC Armoured Electric Cable 2 Years Warranty





Constructions



Conductor: Plain circular stranded copper conductor, comform to IEC 60228 class 2

Insulation: XLPE(cross-linked polyethylene) rated at 90oC

Inner Covering: PVC

Inner Sheath: PVC

Armoring: Steel Wire

Overall Sheath: PVC type ST8 to IEC 60502, black

Note: Insulation color as per standards or at request



Applications



Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/1 kV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.



Standards



International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request



Technical data





Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D



Certificates



CE, RoHS, CCC, KEMA and more others at request


Specifications









Nom. Cross-section of conductor Insulation Thickness Inner Sheath Thickness Steel Wire Dia. Outer Sheath Thickness Approx. O.D. Approx. Weight Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 mm mm mm mm mm kg/km Ω /km kV/5min In air (A) In soil(A)
1x300 4.5 1.3 2.5 2.4 50.50 6056 ≤0.0601 30.5 640 595





Packing & Shipping


We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.



Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
