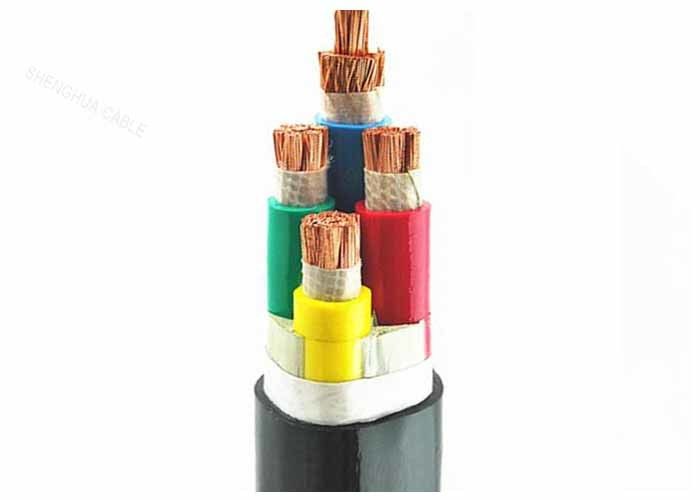

Copper Conductor 4 Core Fire Resistant Cable 1.5 sqmm ~ 800 sqmm

Copper Conductor 4 Core Fire Resistant Cable 1.5 sqmm ~ 800 sqmm

모크: 500meter
표준 포장: 나무로 되는 드럼
배달 기간: 일정에 따라
지불 방법: L/C, T/T, D/A, D/P, 서부 동맹, MoneyGram
자세한 정보
원래 장소
중국
브랜드 이름
QINGDAO YICABLE CABLE
인증
IEC,KEMA,ISO,CE
크기:
1.5sqmm~800sqmm
도체 유형:
구리
중핵 아니.:
칼집 색깔:
오렌지
일하고 온도:
90℃
견본:
무료로를 위해 20cm
강조하다:

fire rated cable

,

fire resistant wire

제품 설명

0.6/1kV Flexible FRC Cable CU/XLPE/PVC Fire Orange Color Resistant Cable Price



Applications



PVC Insulated Cable is used as power distribution and transmission line at rated voltage 0.6/1KV.

Used outside as energy utility and lighting cables, in cable ducts, under ground, under normal and salty water if specially made.



Standards



International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS,DIN and ICEA upon request



Installation



1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.
3. After installantion, the cable should with stand voltage test for 15min. 3.5kv D.C.



Technical parameter:



Cross section of conductor Thickness of insulation Thickness of Sheath Approx.cable diameter Max.resistance of conductor at 20 ℃ Test Voltage(AC)
mm2 mm mm mm ohm/km KV/5min
4x2.5 0.8 1.8 12.7 7.41 3.5
4x4 1.0 1.8 14.9 4.61 3.5
4x6 1.0 1.8 16.1 3.08 3.5
4x10 1.0 1.8 19.2 1.83 3.5
4x16 1.0 1.8 21.7 1.15 3.5
4x25 1.2 1.8 25.9 0.73 3.5
4x35 1.1 1.8 28.7 0.524 3.5
4x50 1.4 1.9 30.4 0.387 3.5
4x70 1.6 2.1 33.9 0.268 3.5
4x95 1.6 2.2 39.7 0.193 3.5
4x120 1.8 2.4 44.2 0.153 3.5
4x150 2.0 2.0 48.7 0.124 3.5
4x185 2.2 2.7 53.5 0.0991 3.5
4x240 2.4 2.9 55.4 0.0754 3.5
4x300 2.6 3.0 61.0 0.060 3.5
4x400 2.6 3.2 70.0 0.0470 3.5




Technical data:


Test voltage 0.6/1 kV [kV] 3.5 / 5 min.
Temperature range in motion -5°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard EN 60332-1-2

Copper Conductor 4 Core Fire Resistant Cable 1.5 sqmm ~ 800 sqmm 0
