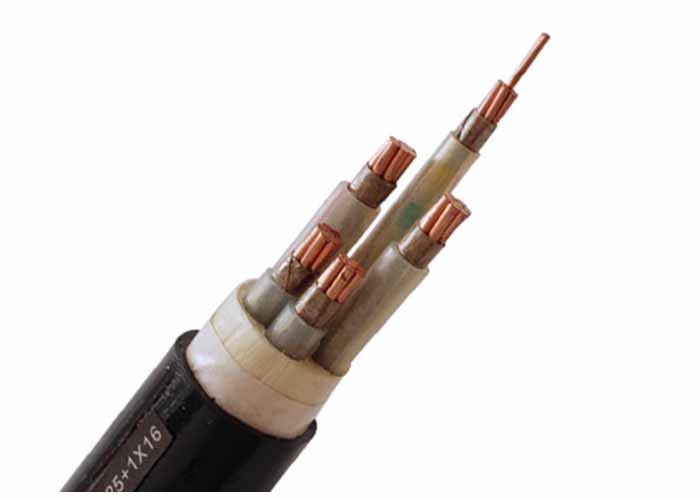

Five Cores Fire Resistant XLPE Insulated Electrical Cable With Earth WIre

Five Cores Fire Resistant XLPE Insulated Electrical Cable With Earth WIre

모크: 200meters
가격: US$0.65~500per meter
표준 포장: 밀봉 나무로 되는 드럼
배달 기간: 양에 따라서
자세한 정보
원래 장소
중국
브랜드 이름
QINGDAO YICABLE CABLE
인증
KEMA,ISO,CE,IEC,PICC
케이블 아니오.:
4+1cores
구조:
CU/XLPE/PVC
스크린 물자:
돌비늘 테이프
기능:
내화성
칼집 색깔:
Oranage
표를 하기:
맞춤형
강조하다:

fire resistant wire

,

fire proof electrical cable

제품 설명

Five Cores Fire Resistant XLPE Insulated Electrical Cable With Earth WIre





1. Application

PVC insulated power cable has excellent electrical properties and chemical stability, it is suitable for fixed laying in power transmission and distribution lines with AC 50Hz and rated voltage below 1KV.



2. Standard: IEC 60502, IEC 60228, IEC 60332



3. Using Features

The long-term working temperature of conductor should be not more than 70oC ;

The maximum working temperature of conductor should be not more than 160oC while short-circuit.

The minimum bending radius of cable laying (D is diameter): single core unarmoured cable is 20D, multi-core unarmoured cable is 15D, single core armoured cable is 15D, multi-core armoured cable is 12D.

The environment temperature of cable laying should be not less than 0oC.



Technical parameter



Cross section of conductor Thickness of insulation Thickness of Sheath Approx.cable diameter Max.resistance of conductor at 20 ℃ Test Voltage(AC)
mm2 mm mm mm ohm/km KV/5min
5x2.5 0.8 1.8 13.6 7.41 3.5
5x4 1.0 1.8 16.1 4.61 3.5
5x6 1.0 1.8 17.7 3.08 3.5
5x10 1.0 1.8 21.0 1.83 3.5
5x16 1.0 1.8 23.8 1.15 3.5
5x25 1.2 1.8 28.7 0.73 3.5
5x35 1.2 1.9 32.0 0.524 3.5
5x50 1.4 2.1 37.4 0.387 3.5
5x70 1.4 2.2 41.7 0.268 3.5
5x95 1.6 2.4 48.1 0.193 3.5
5x120 1.6 2.5 53.0 0.153 3.5
5x150 1.8 2.7 58.6 0.124 3.5
5x185 2.0 2.9 65.1 0.0991 3.5
5x240 2.2 3.1 72.1 0.0754 3.5
5x300 2.4 3.4 80.1 0.060 3.5
5x400 2.6 3.6 87.0 0.0470 3.5



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 2-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
