| 모크: | 1000Meters |
| 표준 포장: | 철 나무로 되는 드럼 |
| 배달 기간: | 순서 양에 따라서 |
| 공급 능력: | 30Kilometer/Month |

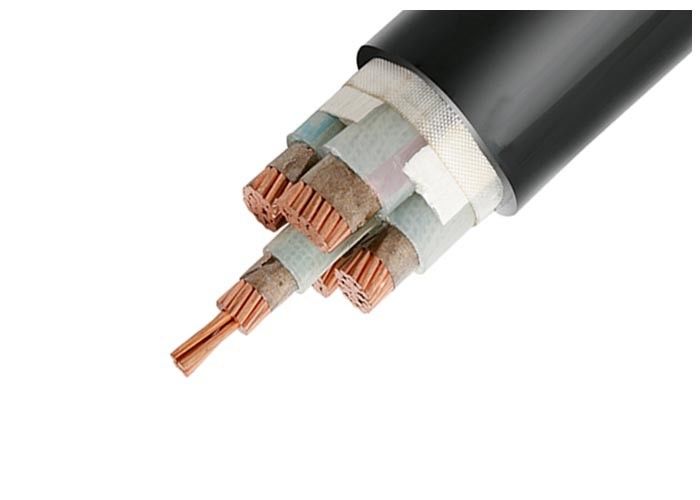

2.5mm2-300mm2 FRC Fire Resistant XLPE Single Core Power cable 0.6/1kV
Cross-linked polyethylene insulated power cable not only has excellent electric and mechanical properties, but also has powerful resistance against chemical corrosion, heat-aging and environmental stress. Its structure is simple and using conveniently, also can be laid with no restriction of different level. The long term operating temperature is 90, and its transmit capacitance is large.
Our company can produce both flame retardant and non-flame retardant series of XLPE power cable.. Our products can be produced according to our works specifications which are equivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are superior to standards stated above..
The flame-retardant cable covers all kinds of low-smoke low-halogen, low-smoke halogen free and three classes of A, B, C. We can design and manufacture special XLPE cable according to the other standards require by the customers, such as heavy section cut part conductors, water-resistant, defend termites, defend mouse, and so on..
|
Product Name
|
FRC XLPE Fire Resistant Cable Price
|
|
Rated Voltage
|
0.6/1kV
|
|
Rated Temperature
|
90℃
|
|
Conductor
|
Solid or stranded copper conductor,with mica tape wound
|
|
Insulation
|
XLPE or LSZH compound
|
|
Sheath
|
LSZH compound
|
|
Sheath Color
|
Orange or red or black
|
|
Application
|
For fixed wiring;
Essential safety circuits where the cable is protected by trunk or conduit.
|
Main properties
| No | Test item | Property | |||
| 1 | Construction | Listed to the tables | |||
| 2 | Conductor resistance | Listed to the tables | |||
| 3 | Voltage test | A.C 3.5kV 5min | No breaken | ||
| 4 | Mechanical properties before aging | Tensile strength | Insulation | Min.12.5N/mm² | |
| Sheath | Min.12.5N/mm² | ||||
| Elongation at break | Insulation | Min.150% | |||
| Sheath | Min.150% | ||||
| Mechanical properties after aging | Tensile strength | Insulation |
100°C±2°C 7days Min.±12.5N/mm² |
||
| Sheath |
100°C±2°C 7days Min.±12.5N/mm² |
||||
| Varying valve of tensile strength | Insulation |
100°C±2°C 7days Min.±25% |
|||
| Sheath |
100°C±2°C 7days Min.±25% |
||||
| Elongation at break | Insulation |
100°C±2°C 7days Min.±150% |
|||
| Sheath |
100°C±2°C 7days Min.±150% |
||||
| Varying valve of tensile strength | Insulation |
100°C±2°C 7days Min.±25% |
|||
| Sheath |
100°C±2°C 7days Min.±25% |
||||
| 5 | Flame-retardant property | Comply with GB12666.5-90(CB) and IEC332-3(CB) | |||
| 6 | Constant of insulation resistivity | Min at 20°C | 36.7 | ||
| Ki MΩ.km | Min at 70°C | 0.037 | |||
1.Sufficient support for our tendering representatives.
2.OEM service available based on official & legal authorization.
3.Strict quality control system.
4.Faster lead time than our competitors.
5.Excellent quality with reasonable price.
6.Strong technical support (technical data, drawing, etc.)
7.Cable solutions to your particular requirements.
8.Free sample is available with economic express fee.
9.12 months quality guarantee after delivery.
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
|
|
