| 모크: | 1000Meters |
| 가격: | US$1.0~120per meter |
| 표준 포장: | 나무로 되는 드럼 |
| 배달 기간: | 순서 양에 따라서 |
| 지불 방법: | L / C, T / T |
| 공급 능력: | 30Kilometer/Month |

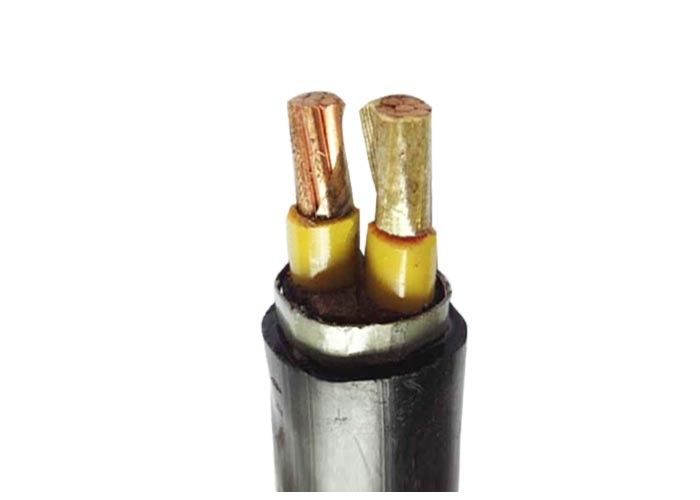

90℃ CU/XLPE/PVC FRC LSZH Power Cable IEC60502-1 ,IEC60228,IEC60331
Fire Protection Cable, Fire Performance Cables & Security Cable-suitable for safety systems.
generally used for maintaining power supplies and lighting circuits and also fire alarm and sprinkler systems.
They are easily identifiable with their low smoke zero halogen outer sheath.
Application:
These cables are installed to supply power to building essential services including fire alarms,
sprinkler control system, emergency and evacuation lighting and smoke control systems,
such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels
Constructions
Conductor: Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound
Insulation: XLPE or LSZH compound
Sheath: LSZH compound
Core color: red, black, blue, white for active core, green/yellow for earth core, orange or red or black for sheath
Max. Operating Temperature :100 meters per roll or wooden drum or as per requirement
Production Capacity :20 kilometer/ day
MOQ : 5000 meters for small size, 1000 meters for big size
Fire Resistant Instrumention Cables
300/500V Mica+XLPE or SR Insulated & Overall Screened Multicore Instrumentation Cables
300/500V Mica+XLPE/SR Insulated & Overall Screened Multipair Instrumentation Cables
300/500V Mica+XLPE Insulated Individual And Overall Screened Instrumentation Cables
300/500V Braid-Screened Flexible Equipment Cables (Multipair)
Current Rating and Voltage Drop
Single Core Cables having PVC Insulation, Unarmoured, With or Without Sheath 450/750V or 600/1000V
Multi-Core Cables having PVC Insulation, Unarmoured (Copper Conductor) 600/1000V
Single Core Cables having PVC Insulation, Armoured (Copper Conductor) 600/1000V
Multi-Core Cables having PVC Insulation, Armoured (Copper Conductor) 600/1000V
Single Core Cables having XLPE Insulation, Unarmoured (Copper Conductor) 600/1000V
Multi-Core Cables having XLPE Insulation, Unarmoured (Copper Conductor) 600/1000V
Single Core Cables having XLPE Insulation, Armoured (Copper Conductor) 600/1000V
Multi-Core Cables having XLPE Insulation, Armoured (Copper Conductor) 600/1000V
Single Core PVC Insulated Flexible Cables
| Type | Rated Voltage | Designation |
|
NH-VV NH-VLV NH-VV22 NH-VLV22 |
0.6/1kV | PVC fiber,mica & fluoline plastic compound sheathed fire-proof power cable |
|
NH-YJV NH-YJLV NH-YJV22 NH-YJLV22 |
0.6/1 kV~ 8.7/15kV |
XLPE or silane XLPE fiber & mica compound insulated fire-proof power cable. |
|
NH-KVV NH-KVVR NH-KVVP NH-KVVRP NH-KVV22 NH-KVVP22 NH-KYJV NH-KYJVP NH-KYJV22 NH-KYJVP22 |
450/750V |
PVC fiber&mica compound insulated fire-proof control cable PVC fiber&mica compound insulated fire-proof control soft cable PVC fiber&mica compound insulated,metal screened fire-proof control cable XLPE fiber&mica compound insulated fire-proof control cable XLPE fiber&mica compound insulated,metal screened fire-proof control cable |
|
NH-BV NH-BLV NH-BVR NH-BVV |
450/750V 300/500V |
PVC fiber&mica compound insulated fire-proof wire PVC fiber&mica compound insulated fire-proof soft wire PVC fiber&mica compound fire-proof cable |
|
|
| 모크: | 1000Meters |
| 가격: | US$1.0~120per meter |
| 표준 포장: | 나무로 되는 드럼 |
| 배달 기간: | 순서 양에 따라서 |
| 지불 방법: | L / C, T / T |
| 공급 능력: | 30Kilometer/Month |
90℃ CU/XLPE/PVC FRC LSZH Power Cable IEC60502-1 ,IEC60228,IEC60331
Fire Protection Cable, Fire Performance Cables & Security Cable-suitable for safety systems.
generally used for maintaining power supplies and lighting circuits and also fire alarm and sprinkler systems.
They are easily identifiable with their low smoke zero halogen outer sheath.
Application:
These cables are installed to supply power to building essential services including fire alarms,
sprinkler control system, emergency and evacuation lighting and smoke control systems,
such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels
Constructions
Conductor: Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound
Insulation: XLPE or LSZH compound
Sheath: LSZH compound
Core color: red, black, blue, white for active core, green/yellow for earth core, orange or red or black for sheath
Max. Operating Temperature :100 meters per roll or wooden drum or as per requirement
Production Capacity :20 kilometer/ day
MOQ : 5000 meters for small size, 1000 meters for big size
Fire Resistant Instrumention Cables
300/500V Mica+XLPE or SR Insulated & Overall Screened Multicore Instrumentation Cables
300/500V Mica+XLPE/SR Insulated & Overall Screened Multipair Instrumentation Cables
300/500V Mica+XLPE Insulated Individual And Overall Screened Instrumentation Cables
300/500V Braid-Screened Flexible Equipment Cables (Multipair)
Current Rating and Voltage Drop
Single Core Cables having PVC Insulation, Unarmoured, With or Without Sheath 450/750V or 600/1000V
Multi-Core Cables having PVC Insulation, Unarmoured (Copper Conductor) 600/1000V
Single Core Cables having PVC Insulation, Armoured (Copper Conductor) 600/1000V
Multi-Core Cables having PVC Insulation, Armoured (Copper Conductor) 600/1000V
Single Core Cables having XLPE Insulation, Unarmoured (Copper Conductor) 600/1000V
Multi-Core Cables having XLPE Insulation, Unarmoured (Copper Conductor) 600/1000V
Single Core Cables having XLPE Insulation, Armoured (Copper Conductor) 600/1000V
Multi-Core Cables having XLPE Insulation, Armoured (Copper Conductor) 600/1000V
Single Core PVC Insulated Flexible Cables
| Type | Rated Voltage | Designation |
|
NH-VV NH-VLV NH-VV22 NH-VLV22 |
0.6/1kV | PVC fiber,mica & fluoline plastic compound sheathed fire-proof power cable |
|
NH-YJV NH-YJLV NH-YJV22 NH-YJLV22 |
0.6/1 kV~ 8.7/15kV |
XLPE or silane XLPE fiber & mica compound insulated fire-proof power cable. |
|
NH-KVV NH-KVVR NH-KVVP NH-KVVRP NH-KVV22 NH-KVVP22 NH-KYJV NH-KYJVP NH-KYJV22 NH-KYJVP22 |
450/750V |
PVC fiber&mica compound insulated fire-proof control cable PVC fiber&mica compound insulated fire-proof control soft cable PVC fiber&mica compound insulated,metal screened fire-proof control cable XLPE fiber&mica compound insulated fire-proof control cable XLPE fiber&mica compound insulated,metal screened fire-proof control cable |
|
NH-BV NH-BLV NH-BVR NH-BVV |
450/750V 300/500V |
PVC fiber&mica compound insulated fire-proof wire PVC fiber&mica compound insulated fire-proof soft wire PVC fiber&mica compound fire-proof cable |
