| 모크: | 1000M |
| 가격: | 0.99USD/M-50USD/M |
| 표준 포장: | 나무로 되는 드럼 |
| 배달 기간: | 30 일 |
| 공급 능력: | 달 당 10KM |

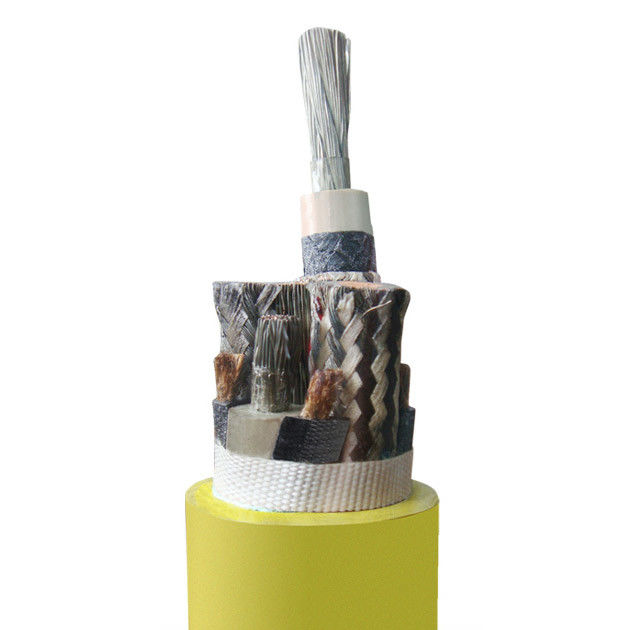

IEC 60092 SHF1 Insulated SICI Fire-Resistant Marine Cable 0.6/1KV
Cable Construction
Conductor: Tinned Copper. IEC 60228 Class 2
Insulation : XLPE Insulation
Inner Sheath : Halogen-free Thermoplastic Polyolefin(SHF1)
Armour : Galvanized Wire Braided/Tinned Copper Wire Braied
Outer Sheath : Halogen-free Thermoplastic Polyolefin(SHF1)
Standards
Design : IEC 60092-350, 353
Insulation Material : IEC 60092 -351
Sheath Material : IEC 60092-359
Flammability: IEC 60332-1 & IEC 60332-3 Category A
Halogen--free: IEC60754-1, IEC60754-2
Smoke Emission: IEC 61034-1, IEC61034-2
Cores & Size
Cores: 1, 2,3,4,5,7,10,12,14,16,19,24
Size (sqmm): 1.5, 2.5. 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 180, 240, 300
Models | Combustion | Core number | (mm2) Nominal sectional area | (KV) Rated Voltage | Temp.℃ |
| CEF,CEF80,CEF82,CE8F,CEF90,CEF92,CEFR CEH,CEH80,CEH90,CEH82,CEH92,CEHR CEV,CEV80,CEV90,CEV82,CEV92,CEVR CE8F,CE8F80,CE8F90,CE8F82,CE8F92,CE8H,CE8H80 CE8H80,CE8H90,CE8H82,CE8F92,CE82,CE8290 | DA SA NA | 1 2 3 | 1-400 2-120 3-185 | 0.6/1 | E:85 J:85 V:80 |
| CEPF,CEPF80,CE96,CEPF90,CEPF86,CEPF96 CEPJ,CEPJ80,CE85,CEPJ90,CEPJ85,CEPJ95 | SC | 4-48 | 1-2.5 | ||
| CEF(HV)P,CEF(HV)P80,CEF(HV)P90 CEF(HV)P82,CEF(HV)P92 CJVP,CJVP80,CJVP90,CJVP82,CJVP92 CVVP,CVVP80,CVVP90,CVVP82,CVVP92 | DA SA | 4-48 | 1-2.5 | ||
| CJV,CJV80,CJV90,CJV82,CJV92 | DA,SA NA | 1 2 3 4-48 | 1-130 2-120 3-185 1-2.5 | - | 85 |
| CJPF,CJPF80,CJPF90,CJPF86,CJPF96,CJPJ,CJPJ80 CJPJ90,CJPJ85,CJPJ95,CYJ85,CYJ86,CYJ95,CYJ96 CYX,CYX8X,CY8X,CYX80,CYX9X | SC,NSC | ||||
| CJPJP,CJPJP80,CJPJP90,CJPJP85,CJPJP95 CJPFP,CJPFP80,CJPFP90,CJPFP86,CJPFP96 | SC,NSC | 2-37 | 1-2.5 | 0.6/1 | |
| CXF,CXF80,CXF82,CXF90,CXF92,CXFR CXV,CXV80,CXV90,CXV82,CXV92 | DA,SA | 1 2 3 4-37 | 1-300 2-120 3-185 1-2.5 | 0.6/1 | 70 |
| CVV,CVV80,CVV82,CVV90,CVV92 | DA SA | ||||
| CBV,CBVR | DA | 1 | 0.35-0.75 | 0.25 | |
1 | 1-95 | 0.6/1 | |||
| CBPF,CBPJ,CBPFR,CBPJR,CBYJ,CBYJR | SC,DC | 1 | 1-95 | 0.6/1 | 85 |
Product descriptions and Codes
Codes | Definition | Codes | Definition |
D | Combustion for single cable | A | have smoke acidity and toxicity |
S | Combustion for bunched cable | B | low smokelow aciditylow toxicity |
N | Fire-proof(Combustion for single cable) | C | Halogen freelow smokelow toxicity |
Codes | Insulation | Codes | Inner sheath | Codes | Armoring | Codes | Outer sheath | Codes | Charac-teristic |
E | EP-rubber insulated | F | Chlorosu-lconation sheath | 8 | Tinned Cu wire woven | 0 | NO-Outer sheath | P | Line core screen |
JYJ | XLPE Insulation | H | Chlorosu- lfonated polyethylene sheath | 9 | Galvanizes Steel wire woven | 2 | Polyvinyl chloride sheath | R | Soft |
V | PVC Insulation | V | Polyvinyl -chloride sheath | - | - | 5 | Cross -linked polyolefin sheath | - | - |
X | NR/SBR insulated | PF | Thermos-plasticity polyolefin sheath | - | - | 6 | Thermos-plasticity polyolefin sheath | - | - |
- | - | PJ | Cross -linked polyolefin sheath | - | - | - | - | - | - |
|
|
