| 모크: | 1000M |
| 가격: | USD 0.4 To 60.5 per Meter |
| 표준 포장: | 강철 나무로 되는 드럼 |
| 배달 기간: | 10-15 일 |
| 공급 능력: | 일 당 5KM |

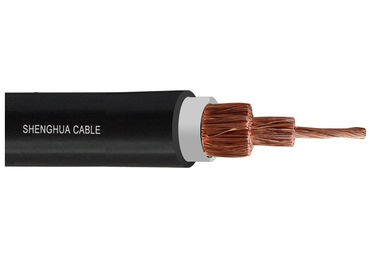

Flexible Copper Wire Rubber Sheath Cable Black Welding Cable For Welding Machine Application
Construction:
Conductor: Flexible Class 5 Copper Conductor
Insualtion: Rubber
Sheath: Rubber
The Advantage Of Low Smoke Low Halogen Rubber
When a fire occurs, it can reduce the toxic gases, protect people's lives
Brief introduction
1 Rated voltage of the cables is 450/750V
2 There are allowed long-term working temperatures of the cable conductor. For the cable the temperature is 65℃.
3 Minimum bending radius: 6 times of the cable diameters.
| Core Type | Nominal Size | Min Insulation Resistance at 20℃(MΩ.km) | |
| No more than 0.66/1.14KV | 1.9/3.3KV | ||
| Phase Conducor or Asistant Conductor |
16 | 350 | 1150 |
| 25 | 300 | 980 | |
| 35 | 260 | 850 | |
| 50 | 230 | 740 | |
| 70 | 210 | 630 | |
| 95 | 200 | 550 | |
| 120 | 200 | 510 | |
| 150 | 180 | 450 | |
| 185 | 160 | 400 | |
| Control Conductor | 4.6.10 | 100 | 100 |
|
|
