| 모크: | 0.5KM |
| 가격: | 0.10USD-10.99USD |
| 표준 포장: | 나무로 되는 드럼 스틸 드럼 |
| 배달 기간: | 15Days 또는 더 많은 것 |
| 지불 방법: | L/C, D/A, D/P, T는 / T, 웨스턴 유니온, MoneyGram |
| 공급 능력: | 달 당 1000KM |

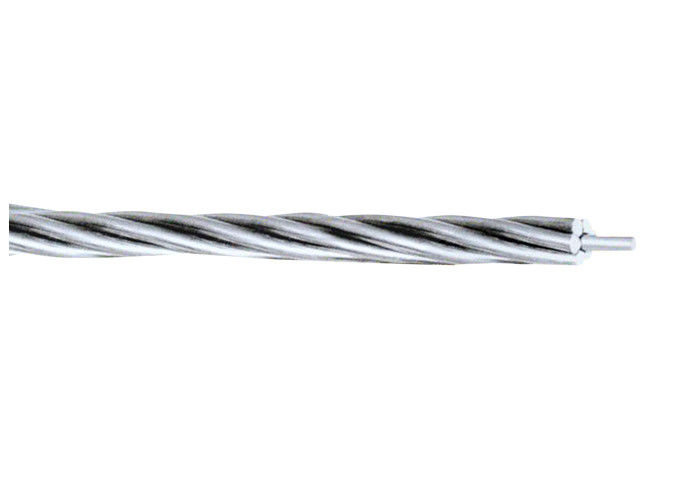

Professional All Aluminium Alloy Conductors Simple Structure Resistant Corrosion
Specifications:
AAC conductor widely used in power transmission lines with various voltage levels.
AAC conductor widely used in power transmission lines with various voltage levels. since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.
| AAC | |||||||
| All Aluminium Stranded Conductors (Class A & Class AA) ASTM B-231 | |||||||
| Code name | Area | Stranding and wire diameter | Approox. Overall diameter | Weight | Nominal breaking load | Nom. DC resistance at 20 deg. | |
| Nominal | Actual | ||||||
| AWG or MCM | mm2 | mm | mm | kg/km | kN | ohm/km | |
| PEACHBELL | 6 | 13.29 | 7/1.554 | 4.67 | 37 | 2.49 | 2.1692 |
| ROSE | 4 | 21.16 | 7/1.961 | 5.89 | 58 | 3.96 | 1.3624 |
| IRIS | 2 | 33.61 | 7/2.474 | 7.42 | 93 | 5.97 | 0.8577 |
| PANSY | 1 | 42.39 | 7/2.776 | 8.33 | 117 | 7.32 | 0.6801 |
| POPPY | 1/0 | 53.48 | 7/3.119 | 9.36 | 147 | 8.73 | 0.539 |
| ASTER | 2/0 | 67.42 | 7/3.503 | 10.51 | 186 | 11.00 | 0.4276 |
| PHLOX | 3/0 | 85.03 | 7/3.932 | 11.80 | 234 | 13.47 | 0.339 |
| OXLIP | 4/0 | 107.23 | 7/4.417 | 13.26 | 296 | 16.98 | 0.2688 |
| VALERIAN | 250 | 126.71 | 19/2.913 | 14.57 | 349 | 20.62 | 0.2275 |
| SNEEZEWORT | 250 | 126.71 | 7/4.80 | 14.40 | 349 | 20.07 | 0.2275 |
| LAUREL | 266.8 | 135.16 | 19/3.01 | 15.05 | 373 | 22.00 | 0.2133 |
| DAISY | 266.8 | 135.16 | 7/4.96 | 14.90 | 373 | 21.41 | 0.2133 |
| PEONY | 300 | 152.0 | 19/3.193 | 15.97 | 419 | 24.03 | 0.1896 |
| TULIP | 336.4 | 170.45 | 19/3.381 | 16.91 | 470 | 26.95 | 0.1691 |
| DAFFODIL | 350 | 177.35 | 19/3.447 | 17.24 | 489 | 28.04 | 0.1625 |
| CANNA | 397.5 | 201.42 | 19/3.673 | 18.36 | 555 | 31.84 | 0.1431 |
| GOLDENTUFT | 450 | 228.0 | 19/3.909 | 19.55 | 629 | 34.99 | 0.1264 |
| SYRINGA | 477 | 241.68 | 37/2.882 | 20.19 | 666 | 38.49 | 0.1193 |
| COSMOS | 477 | 241.68 | 19/4.023 | 20.12 | 666 | 37.08 | 0.1193 |
| HYACINTH | 500 | 253.35 | 37/2.951 | 20.65 | 698 | 40.35 | 0.1138 |
| ZINNIA | 500 | 253.35 | 19/4.12 | 20.60 | 698 | 38.88 | 0.1138 |
| DAHLIA | 556.5 | 282 | 19/4.346 | 21.73 | 777 | 43.27 | 0.1022 |
| MISTLETOE | 556.5 | 282 | 37/3.114 | 21.79 | 777 | 43.62 | 0.1022 |
| MEADOWSWEET | 600 | 304 | 37/3.233 | 22.63 | 838 | 47.03 | 0.0948 |
| ORCHID | 636 | 322.25 | 37/3.33 | 23.31 | 888 | 49.85 | 0.0894 |
| HEUCHERA | 650 | 329.35 | 37/3.366 | 23.56 | 908 | 50.95 | 0.0875 |
| FLAG | 700 | 354.71 | 61/2.72 | 24.48 | 978 | 51.46 | 0.0813 |
| VERBENA | 700 | 354.71 | 37/3.493 | 24.45 | 978 | 54.87 | 0.0813 |
| NASTURTIUM | 715.5 | 362.58 | 61/2.75 | 24.76 | 1000 | 58.74 | 0.0795 |
| VIOLET | 715.5 | 362.58 | 37/3.533 | 24.74 | 1000 | 56.09 | 0.0795 |
| CATTAIL | 750 | 380 | 61/2.817 | 25.35 | 1048 | 59.85 | 0.0759 |
| PETUNIA | 750 | 380 | 37/3.617 | 25.32 | 1048 | 58.75 | 0.0759 |
| LILAC | 795 | 402.84 | 61/2.90 | 26.11 | 1111 | 63.45 | 0.0715 |
| ARBUTUS | 795 | 402.84 | 37/3.724 | 26.06 | 1111 | 62.32 | 0.0715 |
| SNAPDRAGON | 900 | 456.06 | 61/3.086 | 27.78 | 1257 | 69.78 | 0.0632 |
| COCKSCOMB | 900 | 456.06 | 37/3.962 | 27.73 | 1257 | 68.48 | 0.0632 |
| GOLDENROD | 954 | 483.42 | 61/3.177 | 28.60 | 1333 | 78.96 | 0.0596 |
| MAGNOLIA | 954 | 483.42 | 37/4.079 | 28.55 | 1333 | 72.58 | 0.0596 |
| CAMELLIA | 1000 | 506.71 | 61/3.251 | 29.36 | 1397 | 77.53 | 0.0569 |
| HAWKWEED | 1000 | 506.71 | 37/4.176 | 29.23 | 1397 | 76.08 | 0.0569 |
| LARKSPUR | 1033.5 | 523.68 | 61/3.307 | 29.76 | 1444 | 80.12 | 0.055 |
| BLUEBELL | 1033.5 | 523.68 | 37/4.244 | 29.72 | 1444 | 78.63 | 0.055 |
| MARIGOLD | 1113 | 563.93 | 61/3.432 | 30.89 | 1555 | 86.28 | 0.0511 |
| HAWTHORN | 1192.5 | 604.26 | 61/3.551 | 31.05 | 1666 | 92.45 | 0.0477 |
| NARCISSUS | 1272 | 644.51 | 61/3.668 | 33.02 | 1777 | 98.61 | 0.0447 |
| COLUMBINE | 1351.5 | 684.84 | 61/3.78 | 34.01 | 1888 | 104.78 | 0.0421 |
| CARNATION | 1431 | 725.1 | 61/3.89 | 35.03 | 1999 | 107.68 | 0.0398 |
| GLADIOLUS | 1510.5 | 765.35 | 61/4.00 | 35.09 | 2110 | 113.65 | 0.0376 |
| COREOPSIS | 1590 | 805.68 | 61/4.099 | 36.51 | 2221 | 119.64 | 0.0358 |
| JESSAMINE | 1750 | 886.71 | 61/4.302 | 38.73 | 2445 | 131.68 | 0.0325 |
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
|
|
