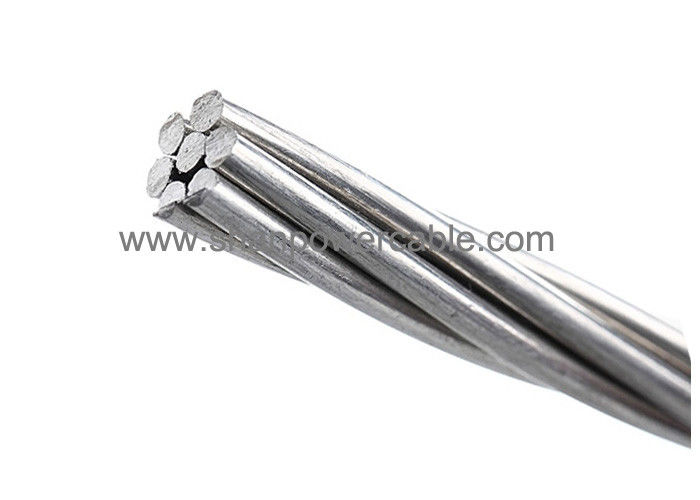

All Aluminium Alloy Stranded Bare Conductors AAAC 18.8sq mm ~ 996sq mm

All Aluminium Alloy Stranded Bare Conductors AAAC 18.8sq mm ~ 996sq mm

모크: 500m
가격: 0.10-30.99USD/m
표준 포장: 나무로 되는 드럼 또는 스틸 드럼
배달 기간: 십오일
지불 방법: L/C, D/A, D/P, T는 / T, 웨스턴 유니온, MoneyGram
공급 능력: 달 당 1000KM
자세한 정보
원래 장소
중국
브랜드 이름
QINGDAO YICABLE CABLE
인증
EN 51082
지휘자의 물자:
알루미늄 합금
코드 이름:
상자, 소나무, Totara의 적색 목재.
철사의 아니:
7pcs~61pcs
전반적인 직경:
5.6mm~41mm
응용 프로그램:
머리 위 전원 시스템
횡단면:
16- 800의 스퀘어 mm
강조하다:

all aluminium alloy conductor

,

acsr conductor

제품 설명

1 Application of All Aluminium Alloy Bare Conductors AAAC

The bare conductor: AAC,AAAC,ACSR,AACSR,ACAR and Galvanized steel wire, are used in overhead electrical power transmission and distribution lines with various grade voltage.



2 Standards of All Aluminium Alloy Bare Conductors AAAC



Our Bare conductor can meet or exceedthe item of cable international standards, such as:IEC 61089, BS 215 part1(AAC), BS 215 part2, BS 324201 (AAAC), DIN 48201 part 5 (AAC), DIN 48204, ASTM B231(AAC), ASTM B232(ACSR), BS EN 50182, BS EN 50183(AAAC), GB/T 1179-2008. Also we accept the OEM and the new design cable as customers.









Type Description No. of Wire

Section Area

(mm2)

AAC All Aluminum Conductor 7~127 16~1500
AAAC All Aluminum Alloy Conductor 7~91 17~1300
ACSR

Aluminum Conductors

Steel Reinforced

7~103 16~1250
AACSR

Aluminum Alloy Conductors

Steel Reinforced

7~103 16~1250
ACAR/AW

Aluminum Conductors

Aluminum Alloy Reinforced

7~103 16~1250
ACSW/S

Aluminum Conductors

Aluminum Clad Steel Wire/Strand

7~103 16~1250
GSW Galvanized Steel Wire 3/2.64~37/4.55 16.41~765.99





3. Specification

AAAC               EN 51082

  Area No. of Diameter   Mass per unit Rated DC
Code Name   wires Wire   Cond. length strength Resistance
  mm2   mm   mm kg/km kN Ω/km
Box 18.8 7 1.85   5.55 51.4 5.55 1.7480
Acacia 23.8 7 2.08   6.24 64.9 7.02 1.3828
Almond 30.1 7 2.34   7.02 82.2 8.88 1.0926
Cedar 35.5 7 2.54   7.62 96.8 10.46 0.9273
Deodar 42.2 7 2.77   8.31 115.2 12.44 0.7797
Fir 47.8 7 2.95   8.85 130.6 14.11 0.6875
Hazel 59.9 7 3.30   9.90 163.4 17.66 0.5494
Pine 71.6 7 3.61   10.8 195.6 21.14 0.4591
Holly 84.1 7 3.91   11.7 229.5 24.79 0.3913
Willow 89.7 7 4.04   12.1 245.0 26.47 0.3665
Oak 118.9 7 4.65   14.0 324.5 35.07 0.2767
Mulberry 150.9 19 3.18   15.9 414.3 44.52 0.2192
Ash 180.7 19 3.48   17.4 496.1 53.31 0.1830
Elm 211.0 19 3.76   18.8 579.2 62.24 0.1568
Poplar 239.4 37 2.87   20.1 659.4 70.61 0.1387
Sycamore 303.2 37 3.23   22.6 835.2 89.40 0.1095
Upas 362.1 37 3.53   24.7 997.5 106.82 0.0917
Yew 479.0 37 4.06   28.4 1319.6 141.31 0.0693
Totara 498.1 37 4.14   29.0 1372.1 146.93 0.0666
Rubus 586.9 61 3.50   31.5 1622.0 173.13 0.567
Sorbus 659.4 61 3.71   33.4 1822.5 194.53 0.0505
Araucaria 821.1 61 4.14   37.3 2269.4 242.24 0.0406
Redwood 996.2 61 4.56   41.0 2753.2 293.88 0.0334
