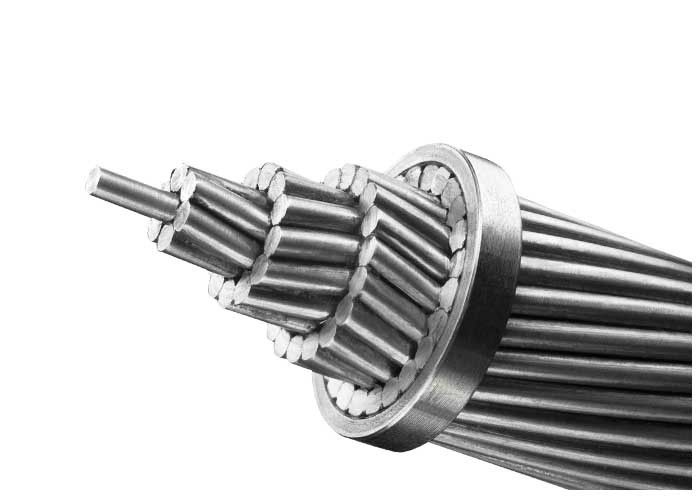

ACSR Aluminium Conductor Steel Reinforced IEC 61089 , BS215 Standard

모크:	500m
가격:	0.10-10.99USD/m
표준 포장:	나무로 되는 드럼 또는 스틸 드럼
배달 기간:	십오일
지불 방법:	L/C, D/A, D/P, T/T
공급 능력:	달 당 1000KM

세부 정보 정보

제품 설명

자세한 정보

원래 장소

중국

브랜드 이름

QINGDAO YICABLE CABLE

인증

IEC61089, BS215 PART2

지휘자:

알류미늄

안 지휘자:

강철

유형:

높은 전압

응용 프로그램:

머리 위 송전

부분적인 지역:

16-1250의 스퀘어 mm

강조하다:

aaac conductor

acsr conductor

제품 설명

Detailed Product Description

Rated Voltage:	132kV	Material:	Aluminium And Steel
Application:	Overhead Transmission Line	Conductor Shape:	Circular
Type:	High Voltage	Cross Section:	10-800 Sq Mm

750AWG 1200AWG ACSR Overhead Conductor , Overhead Line Conductor

ACAR overhead cable Include following code and specification

ACAR alloy overhead cable widely used in power transmission lines with various voltage levels, for they have the advantages as high mechanical strength, good conductivity, corrosion resistance, unit volume light, easy to set up, high temperature resistance, simple structure, convenient installation and maintenance, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.

AAC conductor Standard: GB1179-83, IEC1089-91.

Applications

Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/KV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.

Characteristic

-- High tension strength ,light weight ,small sag

-- Aluminum with hard surface,anti-extrusion,easy connection,high efficiency construction

-- A good creep resistance

-- Resistant to corrosion ,long service life

Type	Description	No. of Wire	Section Area (mm2)
AAC	All Aluminum Conductor	7~127	16~1500
AAAC	All Aluminum Alloy Conductor	7~91	17~1300
ACSR	Aluminum Conductors Steel Reinforced	7~103	16~1250
AACSR	Aluminum Alloy Conductors Steel Reinforced	7~103	16~1250
ACAR/AW	Aluminum Conductors Aluminum Alloy Reinforced	7~103	16~1250
ACSW/S	Aluminum Conductors Aluminum Clad Steel Wire/Strand	7~103	16~1250
GSW	Galvanized Steel Wire	3/2.64~37/4.55	16.41~765.99

ACSR Conductor technical data

BS215 PART2
Code	Cross			No.of wires		Wire daimeter		Diameter		Mass per	Rated	Maximum
name	section					Wire daimeter		Diameter		unit length	strength	DC resistance
	Al	Steel	Total			Al	Steel	Core	Cond.			at 20°C
	mm2	mm2	mm2	Al	Steel	mm	mm	mm	mm	kg/km	kN	ohm/km
MOLE	10.6	1.77	12.4	6	1	1.5	1.5	1.5	4.5	42.8	4.14	2.7027
SQUIRREL	21	3.5	24.5	6	1	2.11	2.11	2.11	6.33	84.7	7.87	1.3659
GOPHEL	26.2	4.37	30.6	6	1	2.36	2.36	2.36	7.08	106	9.58	1.0919
WEASEL	31.6	5.27	36.9	6	1	2.59	2.59	2.59	7.77	127.6	11.38	0.9065
FOX	36.7	6.11	42.8	6	1	2.79	2.79	2.79	8.37	148.1	13.21	0.7812
FERRET	42.4	7.07	49.5	6	1	3	3	3	9	171.2	15.27	0.6757
RABBIT	52.9	8.81	61.7	6	1	3.35	3.35	3.35	10.1	213.5	18.42	0.5419
MINIK	63.1	10.5	73.6	6	1	3.66	3.66	3.66	11	254.9	21.67	0.454
SKUNK	63.2	36.9	100.1	12	7	2.59	2.59	7.77	13	463	52.79	0.4568
BEAVER	75	12.5	87.5	6	1	3.99	3.99	3.99	12	302.9	25.76	0.382
HORSE	73.4	42.8	116.2	12	7	2.79	2.79	8.37	14	537.3	61.26	0.3936
RACOON	78.8	13.1	92	6	1	4.09	4.09	4.09	12.3	318.3	27.06	0.3635
OTTER	83.9	14	97.9	6	1	4.22	4.22	4.22	12.7	338.8	28.81	0.3415
CAT	95.4	15.9	111.3	6	1	4.5	4.5	4.5	13.5	385.3	32.76	0.3003
HARE	105	17.5	122.5	6	1	4.72	4.72	4.72	14.2	423.8	36.04	0.273
DOG	105	13.6	118.5	6	7	4.72	1.57	4.71	14.2	394	32.65	0.2733
COYOTE	131.7	20.1	151.8	26	7	2.54	1.91	5.73	15.9	520.7	45.86	0.2192
COUGAR	131.5	7.31	138.8	18	1	3.05	3.05	3.05	15.3	418.8	29.74	0.2188
TIGER	131.2	30.6	161.9	30	7	2.36	2.36	7.08	16.5	602.2	57.87	0.2202
WOLF	158.1	36.9	194.9	30	7	2.59	2.59	7.77	18.1	725.3	68.91	0.1829
DINGO	158.7	8.81	167.5	18	1	3.35	3.35	3.35	16.8	505.2	35.87	0.1814
LYNX	183.4	42.8	226.2	30	7	2.79	2.79	8.37	19.5	841.6	79.97	0.1576
CARACAL	184.2	10.2	194.5	18	1	3.61	3.61	3.61	18.1	586.7	40.74	0.1562
PANTHER	212.1	49.5	261.5	30	7	3	3	9	21	973.1	92.46	0.1363
JAGUAR	210.6	11.7	222.3	18	1	3.86	3.86	3.86	19.3	670.8	46.57	0.1366
LION	238.3	55.6	293.9	30	7	3.18	3.18	9.54	22.3	1093.4	100.47	0.1213
BEAR	264.4	61.7	326.1	30	7	3.35	3.35	10.1	23.5	1213.4	111.5	0.1093
GOAT	324.3	75.7	400	30	7	3.71	3.71	11.1	26	1488.2	135.13	0.0891
SHEEP	375.1	87.5	462.6	30	7	3.99	3.99	12	27.9	1721.3	156.3	0.0771
ANTELOPE	374.1	48.5	422.6	54	7	2.97	2.97	8.91	26.7	1413.8	118.88	0.0773
BISON	381.7	49.5	431.2	54	7	3	3	9	27	1442.5	121.3	0.0758
DEER	429.6	100.2	529.8	30	7	4.27	4.27	12.8	29.9	1971.4	179	0.0673
ZEBRA	428.9	55.6	484.5	54	7	3.18	3.18	9.54	28.6	1620.8	131.92	0.0674
ELK	477.1	111.3	588.5	30	7	4.5	4.5	13.5	31.5	2189.5	198.8	0.0606
CAMEL	476	61.7	537.7	54	7	3.35	3.35	10.1	30.2	1798.8	146.4	0.0608
MOOSE	528.5	68.5	597	54	7	3.53	3.53	10.6	31.8

ACSR Aluminium Conductor Steel Reinforced IEC 61089 , BS215 Standard 0
