| 모크: | 5KM |
| 가격: | USD1-100/Meter |
| 표준 포장: | 나무로 되는 드럼 스틸 드럼 |
| 배달 기간: | 협상 가능 |
| 공급 능력: | 달 당 500 킬로미터 |

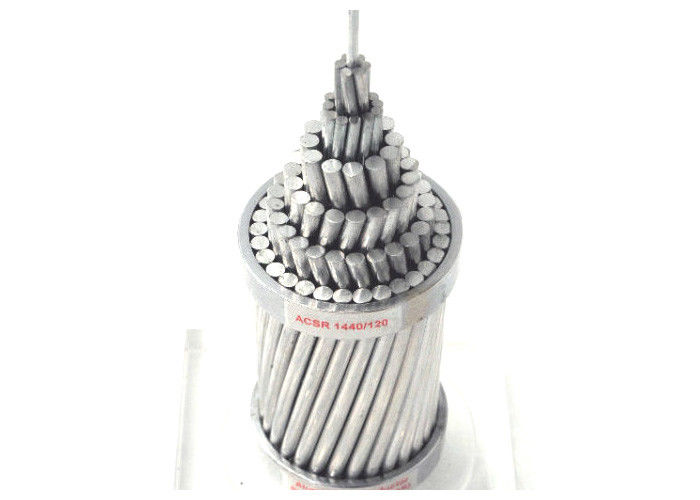

Power Transmission Overhead Bare Conductor Aluminum Conductor Steel Wire Reinforced
Applications
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Construction
Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); Or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.
| Code Name |
Nominal | Number/Diameter | Calculated Area mm2 | Diameter mm | Resistance ≤Ω/km |
Force KN |
Weight kg/km |
|||
| AWG or MCM | Al mm |
Steel mm |
Al | Steel | Total | |||||
| Turkey | 6 | 6/1.68 | 1/1.68 | 13.29 | 2.19 | 15.48 | 5.04 | 2.1586 | 5.24 | 54 |
| Swan | 4 | 3/2.12 | 1/2.12 | 21.16 | 3.55 | 24.71 | 6.36 | 1.3557 | 8.32 | 85 |
| Swanate | 4 | 7/1.96 | 1/2.61 | 21.16 | 5.35 | 26.51 | 6.53 | 1.3557 | 10.53 | 100 |
| Sparrow | 2 | 6/2.67 | 1/2.67 | 33.61 | 5.61 | 39.22 | 8.01 | 0.8535 | 12.70 | 136 |
| Sparate | 2 | 7/2.47 | 1/3.30 | 33.61 | 8.52 | 42.13 | 8.24 | 0.8535 | 16.11 | 159 |
| Robin | 1 | 6/3.00 | 1/3.00 | 42.39 | 7.10 | 49.49 | 9.00 | 0.6767 | 15.85 | 171 |
| Raven | 1/0 | 6/3.78 | 1/3.37 | 53.48 | 8.90 | 62.38 | 10.11 | 0.5364 | 19.32 | 216 |
| Quail | 2/0 | 6/3.78 | 1/3.78 | 67.42 | 11.23 | 78.65 | 11.34 | 0.4255 | 23.62 | 273 |
| Pigeon | 3/0 | 6/4.25 | 1/4.25 | 85.03 | 14.19 | 99.22 | 12.75 | 0.3373 | 29.41 | 343 |
| Penguin | 4/0 | 6/477 | 1/4.77 | 107.23 | 17.87 | 125.10 | 14.31 | 0.2675 | 37.06 | 433 |
| Waxwing | 266.8 | 18/3.09 | 1/3.09 | 135.16 | 7.48 | 142.64 | 15.45 | 0.2133 | 30.27 | 431 |
| Partridge | 266.8 | 26/2.57 | 7/2.00 | 135.16 | 22.00 | 157.16 | 16.28 | 0.2143 | 50.29 | 546 |
| Ostrich | 300 | 26/2.73 | 7/2.12 | 152.00 | 24.71 | 176.71 | 17.28 | 0.1906 | 56.52 | 614 |
| Merlin | 336.4 | 18/3.47 | 1/3.47 | 170.45 | 9.48 | 179.93 | 17.5 | 0.1691 | 38.23 | 544 |
| Linnet | 336.4 | 26/2.89 | 7/2.25 | 170.45 | 21.81 | 198.26 | 18.31 | 0.1699 | 62.71 | 689 |
| Oriole | 336.4 | 30/2.69 | 7/2.69 | 170.45 | 39.81 | 210.26 | 18.83 | 0.1704 | 77.27 | 784 |
| Chickadee | 397.5 | 18/3.77 | 1/3.77 | 201.42 | 11.16 | 212.58 | 18.85 | 0.1431 | 43.99 | 642 |
| Brant | 397.5 | 24/3.27 | 7/2.18 | 201.42 | 26.13 | 227.55 | 19.61 | 0.1438 | 64.69 | 762 |
| Ibis | 397.5 | 26/3.14 | 7/2.44 | 201.42 | 32.77 | 234.19 | 19.88 | 0.1438 | 72.11 | 814 |
| Lark | 397.5 | 30/2.92 | 7/2.92 | 201.42 | 46.97 | 248.39 | 20.44 | 0.1442 | 88.69 | 927 |
| Pelican | 477 | 18/4.14 | 1/4.14 | 241.68 | 13.42 | 255.10 | 20.70 | 0.1193 | 52.16 | 771 |
| Flicker | 477 | 24/3.58 | 7/2.39 | 241.68 | 31.29 | 272.97 | 21.49 | 0.1199 | 76.66 | 915 |
| Hawk | 477 | 26/3.44 | 7/2.67 | 241.68 | 39.42 | 281.10 | 21.79 | 0.1199 | 86.65 | 978 |
| Hen | 477 | 30/3.20 | 7/3.20 | 241.68 | 56.39 | 298.07 | 22.40 | 0.1201 | 105.34 | 1112 |
| Osprey | 556.5 | 18/4.47 | 1/4.47 | 282.00 | 15.68 | 297.68 | 22.35 | 0.1022 | 60.88 | 899 |
| Parakeet | 556.5 | 24/3.87 | 7/2.58 | 282.00 | 36.58 | 318.58 | 23.22 | 0.1027 | 88.22 | 1067 |
| Dove | 556.5 | 26/3.72 | 7/2.89 | 282.00 | 45.94 | 327.94 | 23.55 | 0.1027 | 101.03 | 1140 |
Our Services:
Shanghai Shenghua Cable (Group) Co.,Ltd is a professional wires and cables manufacturer for 20 years in China. we support to offer many kinds of wires and cables, such as xlpe/pvc electrical power cable, control power cable, aerial cable, ABC, AAC, AAAC, ASCR cables, and XLPO/PVC Solar PV Cable etc. We can produce the standard: ASTM, BS, CSA, IEC, ASMC, DIN as your need.
About Shenghua:
The biggest cable Manufacturer in China
Listed as No.2 of TOP 10 Cable Manufacturers
3 branch factories listed as Top 10 Cable Factories in China
Originated in 1950 and found in 1997
21 branch factories around China
80--available types of cables
600--sales branches and offices around the world
5000--Employees
1332000 m2--Total spaces
1100000 km--Annual output of cables
10000000000 RMB--Annual sales amount
|
|
