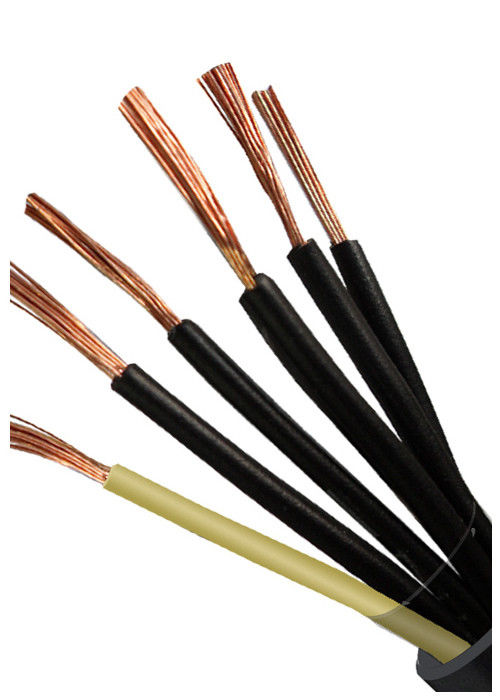

Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2

Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2

모크: 1000M
가격: USD 0.4 To 10.5 per Meter
표준 포장: Rolls 나무로 되는 스틸 드럼 당 100/200 미터
배달 기간: 10-15 일
공급 능력: 일 당 8KM
자세한 정보
원래 장소
중국
브랜드 이름
QINGDAO YICABLE CABLE
인증
CE/KEMA/CCC/TUV
단열재:
폴리 비닐 클로라이드
칼집:
폴리 비닐 클로라이드
재료:
어닐링 구리
도체 유형:
유연한 클래스 5
중핵 아니.:
4에서 61
크기:
이 10mm2에 0.5mm2
좌초 유형:
좌초되는 뭉치
색깔:
검정 또는 회색
강조하다:

multicore power cable

,

multi core electrical cable

제품 설명

Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2



Construction:



Conductor: Class 5 Copper Conductor

Insualtion: PVC

Sheath: PVC



Standard:



IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request





Technical data



Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (70℃), emergency (100 or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 6 x cable O.D





Certificates



CE, RoHS, CCC, KEMA and more others at request



Application:



Suitable for being laid indoors, in cable trench, pipelines or other specific occasions and High performance soft place





Specifications:



Cross-Sectional
Area mm2
Thickness of
Insulation
Thickness of
Sheath
Overall Diameter Min resistance of
insulation at
70℃ MΩ/km
Max.D.C resistance
of at 20℃
MΩ/km
min max
4x0.5 0.6 1.2 7.3 9.2 0.013 39
4x0.75 0.6 1.2 7.6 9.6 0.011 26
4x1.0 0.6 1.2 8 10 0.01 19.5
4x1.5 0.7 1.2 9 11.3 0.01 13.3
4x2.5 0.8 1.2 10.5 13.1 0.009 7.98
5x0.75 0.6 1.2 7.9 9.9 0.013 26
5x1.0 0.6 1.2 8.3 10.3 0.011 19.5
5x1.5 0.7 1.2 9.8 12.2 0.01 13.3
5x2.5 0.8 1.5 11.5 14.3 0.009 7.98
7x0.5 0.6 1.2 8.5 10.6 0.013 39
7x0.75 0.6 1.2 8.9 11.1 0.011 26
7x1.0 0.6 1.2 9.3 11.7 0.01 19.5
7x1.5 0.7 1.2 10.6 13.2 0.01 13.3
7x2.5 0.8 1.5 13.1 16.2 0.009 7.98
