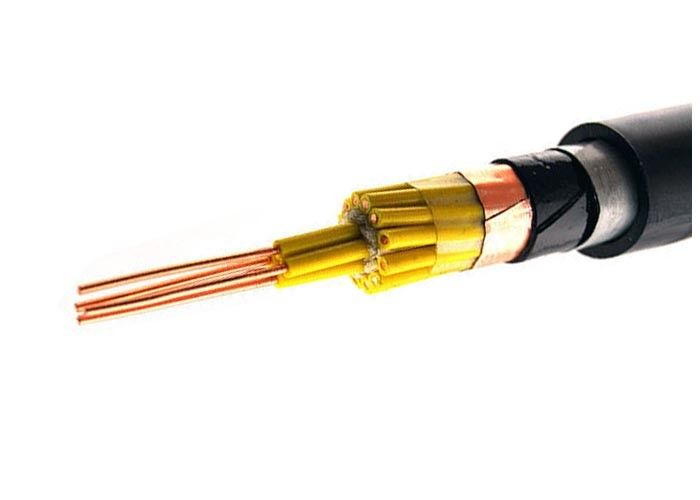

Flexible class 5 PVC Insulation Copper Wire 24 Core Control Cable

Flexible class 5 PVC Insulation Copper Wire 24 Core Control Cable

모크: 1000M
가격: USD 5.2 To 19.5 per Meter
표준 포장: Rolls 나무로 되는 스틸 드럼 당 100/200 미터
배달 기간: 10-15 일
공급 능력: 일 당 8KM
자세한 정보
원래 장소
중국
브랜드 이름
QINGDAO YICABLE CABLE
인증
CE/KEMA/CCC/TUV
단열재:
폴리 비닐 클로라이드
칼집:
폴리 비닐 클로라이드
자료:
어닐링 구리
도체 유형:
유연한 클래스 5
중핵 아니.:
4에서 61
크기:
이 10mm2에 0.5mm2
좌초 유형:
좌초되는 뭉치
색깔:
검정 또는 회색
강조하다:

multicore flexible cable

,

multi core electrical cable

제품 설명

2018 Hot Sale PVC Insulation Copper Wire 24 Core Control Cable



Construction:



Conductor: Class 5 Copper Conductor

Insualtion: PVC

Sheath: PVC



Standard:



IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request





Technical data



Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (70℃), emergency (100 or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 6 x cable O.D





Certificates



CE, RoHS, CCC, KEMA and more others at request



Application:



Suitable for being laid indoors, in cable trench, pipelines or other specific occasions and High performance soft place





Specifications:



Cross-Sectional
Area mm2
Thickness of
Insulation
Thickness of
Sheath
Overall Diameter Min resistance of
insulation at
70℃ MΩ/km
Max.D.C resistance
of at 20℃
MΩ/km
min max
4x0.5 0.6 1.2 7.3 9.2 0.013 39
4x0.75 0.6 1.2 7.6 9.6 0.011 26
4x1.0 0.6 1.2 8 10 0.01 19.5
4x1.5 0.7 1.2 9 11.3 0.01 13.3
4x2.5 0.8 1.2 10.5 13.1 0.009 7.98
5x0.75 0.6 1.2 7.9 9.9 0.013 26
5x1.0 0.6 1.2 8.3 10.3 0.011 19.5
5x1.5 0.7 1.2 9.8 12.2 0.01 13.3
5x2.5 0.8 1.5 11.5 14.3 0.009 7.98
7x0.5 0.6 1.2 8.5 10.6 0.013 39
7x0.75 0.6 1.2 8.9 11.1 0.011 26
7x1.0 0.6 1.2 9.3 11.7 0.01 19.5
7x1.5 0.7 1.2 10.6 13.2 0.01 13.3
7x2.5 0.8 1.5 13.1 16.2 0.009 7.98


FAQ


Q: How long does it take to get a quote back?


A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.


Q: What warranties do your products carry?


A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.

Q: Do you sell other products besides wire and cable?


A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.



Flexible class 5 PVC Insulation Copper Wire 24 Core Control Cable 0
