| 모크: | 1000Meters |
| 가격: | US$1.0~120per meter |
| 표준 포장: | 철 나무로 되는 드럼 |
| 배달 기간: | 순서 양에 따라서 |
| 지불 방법: | L / C, T / T |
| 공급 능력: | 30Kilometer/Month |

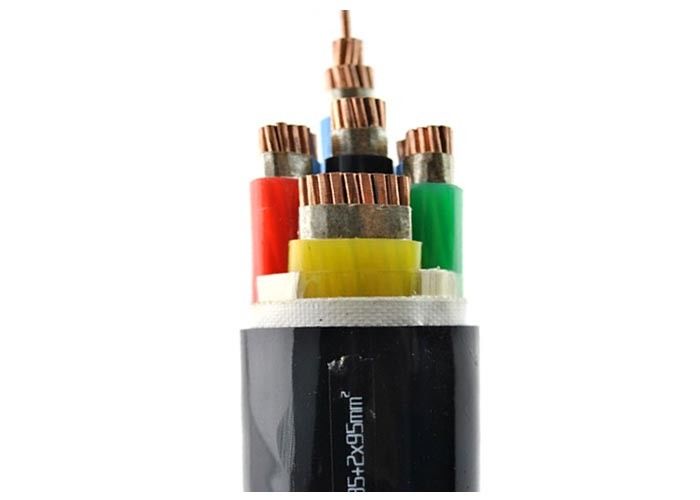

0.6/1KV FRC-XLPE/LSHF Fire Resistant Low Smoke Halogen Free Cable
Scope of application: This item is applied for the alternating current circuitry with voltage (Uo/U) 0.6/1kV for the power supply.
Working conditions:
1) This maximum working temperature of the conductor is 70°C.
2) During having a short(lasting less than 5 seconds)the maximum temperature of the cable conductor for shall not be above 160°C.
3) Environment temperature should be no lower than 0°C for laying the cable;
4) Bending radius allowance of the cable;
single core cable: no steel tape cable 20D: steel tape cable 15D.
3 core cable: no steel tape cable 15D; steel tape cable 12D.
Main properties
| No | Test item | Property | |||
| 1 | Construction | Listed to the tables | |||
| 2 | Conductor resistance | Listed to the tables | |||
| 3 | Voltage test | A.C 3.5kV 5min | No breaken | ||
| 4 | Mechanical properties before aging | Tensile strength | Insulation | Min.12.5N/mm² | |
| Sheath | Min.12.5N/mm² | ||||
| Elongation at break | Insulation | Min.150% | |||
| Sheath | Min.150% | ||||
| Mechanical properties after aging | Tensile strength | Insulation |
100°C±2°C 7days Min.±12.5N/mm² |
||
| Sheath |
100°C±2°C 7days Min.±12.5N/mm² |
||||
| Varying valve of tensile strength | Insulation |
100°C±2°C 7days Min.±25% |
|||
| Sheath |
100°C±2°C 7days Min.±25% |
||||
| Elongation at break | Insulation |
100°C±2°C 7days Min.±150% |
|||
| Sheath |
100°C±2°C 7days Min.±150% |
||||
| Varying valve of tensile strength | Insulation |
100°C±2°C 7days Min.±25% |
|||
| Sheath |
100°C±2°C 7days Min.±25% |
||||
| 5 | Flame-retardant property | Comply with GB12666.5-90(CB) and IEC332-3(CB) | |||
| 6 | Constant of insulation resistivity | Min at 20°C | 36.7 | ||
| Ki MΩ.km | Min at 70°C | 0.037 | |||
1.Sufficient support for our tendering representatives.
2.OEM service available based on official & legal authorization.
3.Strict quality control system.
4.Faster lead time than our competitors.
5.Excellent quality with reasonable price.
6.Strong technical support (technical data, drawing, etc.)
7.Cable solutions to your particular requirements.
8.Free sample is available with economic express fee.
9.12 months quality guarantee after delivery.
|
|
