| 모크: | 100m |
| 가격: | USD 0.01-6.88/M |
| 표준 포장: | 나무로 되는 드럼 |
| 배달 기간: | 3 일 |
| 지불 방법: | L / C, T / T |
| 공급 능력: | 96000KM/Day |

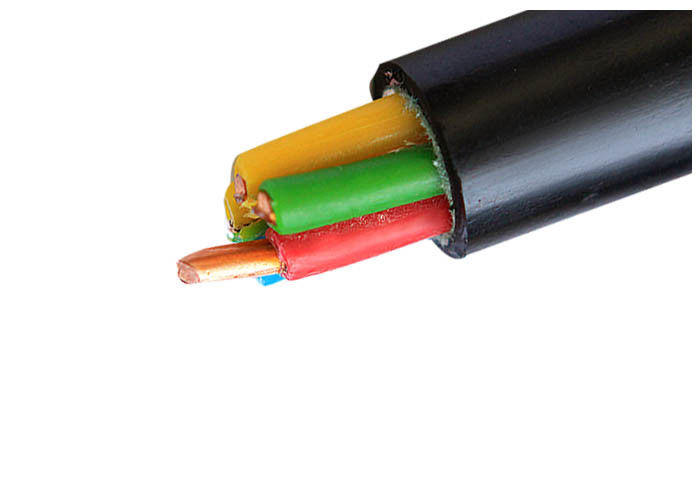

Best Quality Low Smoke Zero Halogen Power Cable CU/XLPE/LSOH -0.6/1KV 4x10SQMM
Product Description
PVC insulated wires belong to the series of laying electric wires, which are mainly suitable for placing at the fixed places. It is widely used as connectors of drive, lighting, electronic equipment, instrument and telecommunication equipment with rated voltage 450/750V (U0/U) or below.
| Application | These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation. | ||
| Standard | IEC 60227, BS 6004, VDE0281, GB/T 5023, JB/T8734 | ||
| Constructions |
Conductor: Class 1/2 Plain annealed copper wires, solid or stranded Insulation: PVC Core color: Brown, Grey, Black, Blue, Green/Yellow or others on request |
||
| Max. Operating Temperature | 70℃, can be 90℃,105℃ as per requirement | ||
| Packing | 100 meter/roll or as per requirement | ||
| Production Capacity | 100 kilometer/ day | ||
| MOQ | 10000 meters for small size, 5000 meters for middle size, 1000 meters for big size | ||
| Delivery time | 10~15 working days | ||
| Remark | The cable can be of flame retardance, fire resistance and other property | ||
Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS,DIN and ICEA upon request
Technique property:
The wires have the property of insulation and flame resistance, good quality and durability.
The long term working temperature of BV-105 can not be exceed 105℃, others not be exceed 75℃, the laying temperature can not be lower than 0℃
Certificates
ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
Our Services
♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
|
|
