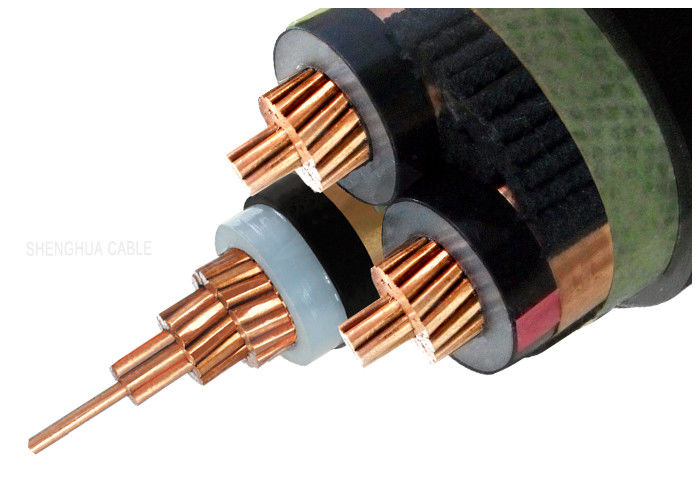

3.6/6kV Three Core Copper XLPE Insulated Power cable Electrical cable

3.6/6kV Three Core Copper XLPE Insulated Power cable Electrical cable

모크: 200
가격: USD 0.5-500 Per Meter
표준 포장: 강철 나무로 되는 드럼
배달 기간: 8 일
지불 방법: L/C, T/T, 서부 동맹, MoneyGram
공급 능력: 달 당 100개 km
자세한 정보
원래 장소
중국
브랜드 이름
QINGDAO YICABLE CABLE
인증
CE,IEC,VDE
금속 스크린:
구리 테이프 스크린
핵심:
3 중핵
중핵 indentification:
잉크 색깔 지구를 가진 수
드럼 길이:
요구에 의하여 500m 또는
절연제 색깔:
성격 또는 주문을 받아서 만드는
강조하다:

xlpe electrical cable

,

cross linked polyethylene cable

제품 설명

3.6/6kV Three Core Copper XLPE Insulated Power cable Electrical cable



Description:



3.6/6kv XLPE Insulated unarmored Power cables

CU/XLPE/PVC, IEC 60502

IEC 60502, IEC 60228, GB/T 12706.1-2008.

CE, CCC, KEMA, RoHS, ISO



Constructions



Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Insulation Screen: Semi-conductor

Screen : Copper tape

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black



Applications



For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.



Standards



International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request



Technical data



Rated voltage: 3.6/6kv

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area below 300mm2, 140℃ when section-area above 300mm2)

Min. Ambient Temperature: The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%



Certificates

CE, RoHS, CCC, KEMA and more others at request



Packing and shipping:



We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.


Cable is supplied in Iron wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.



Brief Technical Specifications:



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
3 × 25 7/2.14 2.5 2.1 37.0 1858 0.727 12.5 120 125
3 × 35 7/2.52 2.5 2.2 39.0 2244 0.524 12.5 145 155
3 × 50 10/2.52 2.5 2.3 40.0 2767 0.387 12.5 175 180
3 × 70 14/2.52 2.5 2.4 45.0 3494 0.268 12.5 215 220
3 × 95 19/2.52 2.5 2.5 48.0 4334 0.193 12.5 265 265
3 × 120 24/2.52 2.5 2.6 51.0 5181 0.153 12.5 305 300
3 × 150 30/2.52 2.5 2.7 54.0 6154 0.124 12.5 345 340
3 × 185 37/2.52 2.5 2.9 58.0 7334 0.0991 12.5 400 380
3 × 240 48/2.52 2.6 3.0 63.0 9146 0.0754 12.5 470 435
3 × 300 61/2.52 2.8 3.2 69.0 11176 0.0601 12.5 535 485
3 × 400 61/2.97 3.0 3.5 77.0 14379 0.0470 12.5 620 520
